Nvidia’s $1.5 Billion Amkor Deal: What It Means for U.S. AI Chip Supply

Nvidia’s $1.5 billion agreement with Amkor is a capacity-security deal, not a simple investment announcement. Under the multi-year partnership announced on July 23, 2026, Nvidia will provide a prepayment to help Amkor expand advanced semiconductor packaging and test operations in the United States, including its Arizona footprint. The companies also plan to align technology roadmaps around high-density interconnects and heterogeneous integration for AI and accelerated-computing platforms, according to Amkor’s announcement of the partnership.

The practical meaning is that Nvidia is helping finance a critical stage between wafer fabrication and a finished AI processor. The deal can give Amkor more confidence to order equipment, build capacity and develop processes before the full demand is visible. It does not immediately make the entire AI semiconductor supply chain domestic, and it does not disclose a detailed production schedule, product allocation or final financial terms beyond the stated $1.5 billion multi-year value.

What Nvidia and Amkor actually agreed to

The agreement combines three elements: customer prepayment, capacity expansion and joint technology development. Reuters reported that the prepayment will support Amkor’s U.S. advanced-packaging operations, while the two companies will work on packaging and testing technologies that combine different types of chips inside one package for AI and accelerated computing systems in its July 23 report on the agreement.

That structure matters because advanced packaging is not merely a final cosmetic step. It determines how processors, memory and other dies are connected, how signals move between them, and how the finished package handles power and heat. Amkor describes heterogeneous integration as placing different dies close together in a single package, a method used to improve performance, efficiency and flexibility in data-center computing and AI applications in its 2026 securities filing.

The wording also leaves important questions unanswered. The companies have not publicly specified which Nvidia platforms will receive capacity, how much of the $1.5 billion will be recognized in each year, or whether the prepayment will be offset against future packaging and test purchases under confidential commercial terms.

Why packaging has become an AI supply-chain constraint

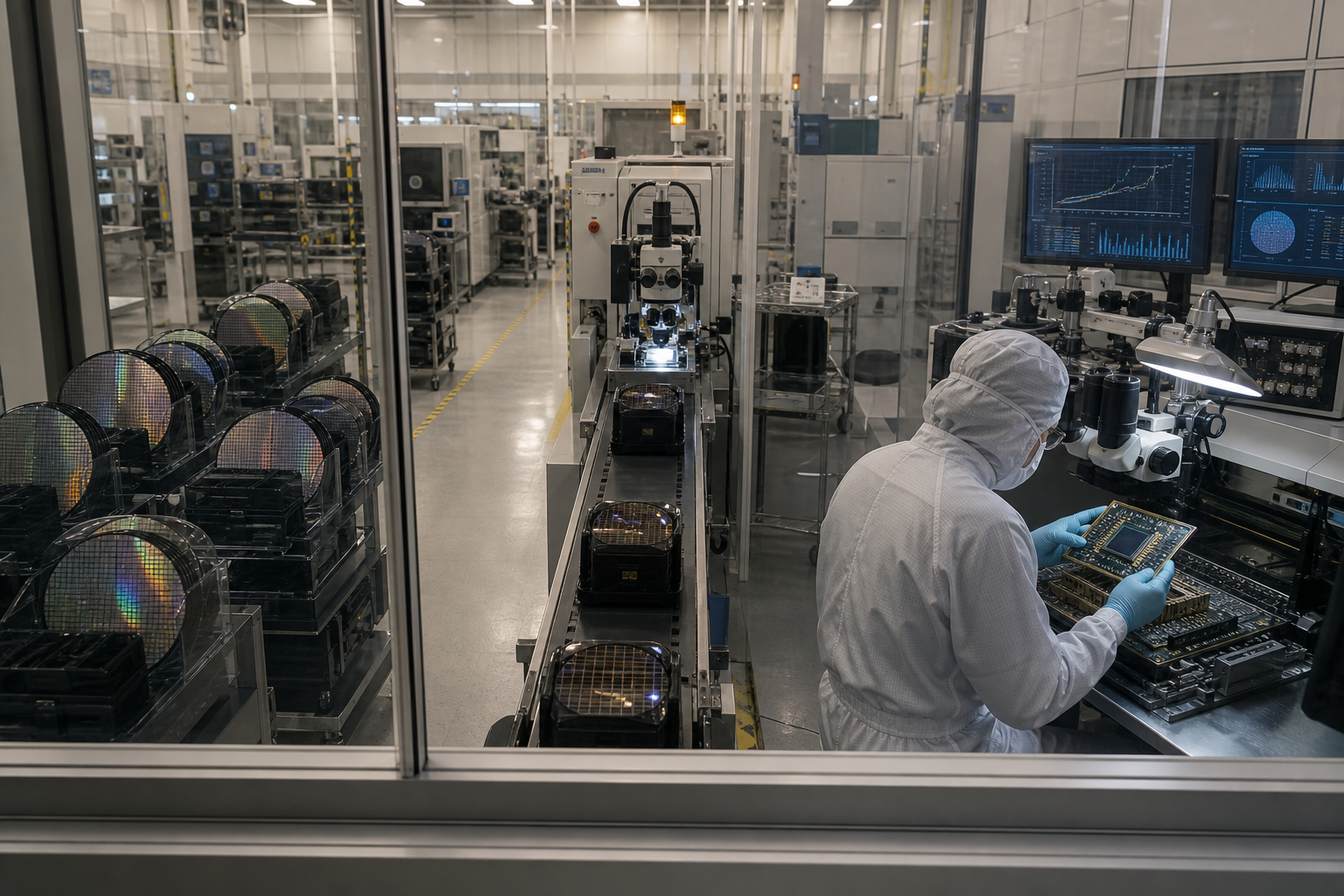

Многокристальный AI-чип проходит сборку с высокоплотными соединениями и электрическое тестирование

The central issue is that producing an advanced AI chip involves more than manufacturing a silicon wafer. After fabrication, chips must be bumped, assembled, connected, packaged and tested. For systems that combine large compute dies with high-bandwidth memory or other components, these steps require specialized equipment, materials, process control and engineering capacity.

Amkor’s filing explains that 2.5D packaging can use high-density silicon interposers to integrate high-performance chips such as graphics processors and high-bandwidth memory in one package in its description of advanced packaging services. This is why a shortage in packaging can limit the shipment of otherwise available wafers: the bottleneck appears later in the manufacturing chain.

For Nvidia, securing packaging capacity can protect the delivery schedule of future accelerator systems. For Amkor, a prepayment reduces some of the financing risk associated with building expensive, highly specialized capacity ahead of confirmed production volumes. The arrangement therefore links Nvidia’s demand visibility with Amkor’s capital deployment.

What the Arizona operation adds to the U.S. strategy

Arizona is important because it is becoming a concentration point for leading-edge semiconductor manufacturing. The U.S. Department of Commerce awarded Amkor Technology Arizona up to $407 million in CHIPS incentives for an approximately $2 billion advanced packaging and test facility in Peoria, with the project expected to support about 2,000 manufacturing jobs and more construction employment in the department’s award announcement.

The public-policy goal is end-to-end production: chips made in the United States should be able to reach advanced packaging and testing without automatically being sent overseas for those stages. That does not mean every material, tool, wafer or component will be sourced domestically. It means the U.S. is adding a strategically important back-end capability to complement local wafer fabs and nearby suppliers.

Independent reporting has described Amkor’s Arizona campus as a multi-building project with production expected to begin in stages, including a first factory targeted for the late 2020s in its report on the Arizona campus. Those timelines are why the Nvidia agreement should be read as a multi-year supply-chain commitment rather than a near-term fix for accelerator availability.

Why the prepayment model is significant

A prepayment changes the economics of capacity expansion. A packaging provider normally has to commit capital to buildings, cleanrooms, tools, engineers and qualification work before revenue arrives. A major customer’s advance payment can help fund that sequence and provide stronger evidence that the capacity will be used.

For Nvidia, the trade-off is that cash is committed before the corresponding packaging services are delivered. The benefit is greater influence over capacity planning and potentially better alignment between Amkor’s equipment choices and Nvidia’s product requirements. In practical terms, Nvidia is treating packaging availability as something worth reserving and co-developing, not as a commodity it can always buy on short notice.

For Amkor, the arrangement can improve visibility but may also increase customer concentration and execution pressure. The company will need to meet Nvidia’s quality, yield, reliability and timing expectations while continuing to serve other customers. Amkor’s filing identifies technology, manufacturing scale, geographic location, customer co-development, investment capacity, quality and cycle time as competitive factors in outsourced packaging and testing in its risk and competition discussion.

What the deal does not prove yet

Планирование расширения упаковочного производства Amkor с учётом авансового финансирования Nvidia

The announcement is strategically meaningful, but it is not evidence that all AI-chip manufacturing is moving to the United States. Amkor operates a global network, and its own corporate materials describe production facilities and development centers across Asia, Europe and the U.S. The Nvidia partnership explicitly connects U.S. expansion with a broader international footprint rather than replacing that footprint.

It also does not establish that Nvidia will receive all of Amkor’s Arizona capacity. The public announcement describes a partnership and expansion support, but it does not publish a complete allocation plan. Nor does it guarantee that advanced packaging constraints will disappear: equipment lead times, substrate availability, workforce recruitment, qualification cycles and production yields can all delay the conversion of announced capacity into usable output.

Another common mistake is to treat the $1.5 billion as equivalent to an immediate revenue increase for Amkor. A multi-year agreement with prepayment can involve timing differences between cash received, capacity construction, service delivery and revenue recognition. Readers evaluating the financial effect should wait for Amkor’s filings and earnings commentary rather than converting the headline value directly into annual sales.

How to follow the business impact

The most useful signals will arrive through operational disclosures, not social-media reactions or a single share-price move. A practical watchlist should separate confirmed milestones from interpretation.

  • Look for updates on Arizona construction, equipment installation and qualification.
  • Track whether Amkor reports higher capital spending, customer prepayments or contract-related balances.
  • Watch for commentary on packaging yields, test capacity, ramp timing and customer concentration.
  • Compare Nvidia’s product launches and supply commentary with the timing of Amkor’s expansion.
  • Follow developments involving nearby wafer fabs, substrates, high-bandwidth memory and logistics providers.

Market reaction can be informative but is not a substitute for operating evidence. Reuters reported that Amkor shares rose sharply in extended trading after the announcement in its initial market coverage, but a one-session move does not establish whether the project will generate attractive returns or meet its schedule.

What this means for creators, analysts and online businesses

For technology creators and independent analysts, the deal is a useful example of how AI infrastructure stories should be explained. The strongest content angle is not “Nvidia spends $1.5 billion,” but “a chip designer is using customer financing to secure a constrained manufacturing stage.” That framing gives readers a mechanism they can understand and verify.

A credible newsletter, video or social post should distinguish three layers: the announced fact, the industry implication and the unresolved question. For example, the announcement confirms a multi-year prepayment and U.S. capacity expansion; it suggests that packaging is strategically important to Nvidia’s supply planning; it does not yet reveal exact production volumes or delivery dates.

If you monetize semiconductor coverage, avoid turning the announcement into a guaranteed stock call. A more durable format is a milestone tracker that links each update to a business question: Is construction progressing? Is equipment arriving? Are qualification runs complete? Is the customer mix broad enough to support utilization? This approach is more useful to professional readers and less exposed to the risk of amplifying an unsupported forecast.

It is also worth labeling the date of every post. Semiconductor agreements can change as projects move from preliminary plans to construction, qualification and volume production. On July 25, 2026, the defensible conclusion is that Nvidia has committed financial support for Amkor’s U.S. advanced-packaging expansion; the eventual capacity, schedule and profitability remain execution questions.

The main risks investors and readers should not overlook

The first risk is timing. Advanced packaging facilities require construction, specialized tools, process development and customer qualification. A headline agreement can accelerate those steps, but it cannot remove the physical sequence.

The second is utilization. Packaging equipment is capital-intensive, and Amkor’s filing notes that factories must operate at sufficiently high utilization to be cost-effective. If AI demand slows, product designs change, or a customer delays a ramp, the economics of new capacity can weaken even when the long-term strategic logic remains intact.

The third is supply-chain dependence. A U.S. packaging site can reduce geographic exposure at one stage while remaining dependent on overseas suppliers for substrates, memory, equipment, chemicals or other inputs. “Onshoring” should therefore be treated as a reduction in selected risks, not as complete independence from global semiconductor networks.

The fourth is concentration. A close relationship with Nvidia can support growth, but it may increase Amkor’s exposure to one customer’s forecasts, architecture decisions and negotiating power. Investors should examine future filings for customer mix, contract terms, capital commitments and any changes in working capital.

Bottom line: a strategic signal with a long implementation cycle

Nvidia’s Amkor agreement shows that advanced packaging has become part of AI infrastructure strategy. The company is using a multi-year prepayment and joint development framework to help expand U.S. capacity, while Amkor gains a stronger anchor customer for investment in Arizona and related technology.

The next step for readers is to follow evidence in sequence: project construction, equipment installation, process qualification, capacity ramp and reported financial impact. Until those milestones appear, the deal is best understood as an important commitment to strengthen the U.S. packaging layer—not as proof that the AI chip supply chain has already been fully onshored.
