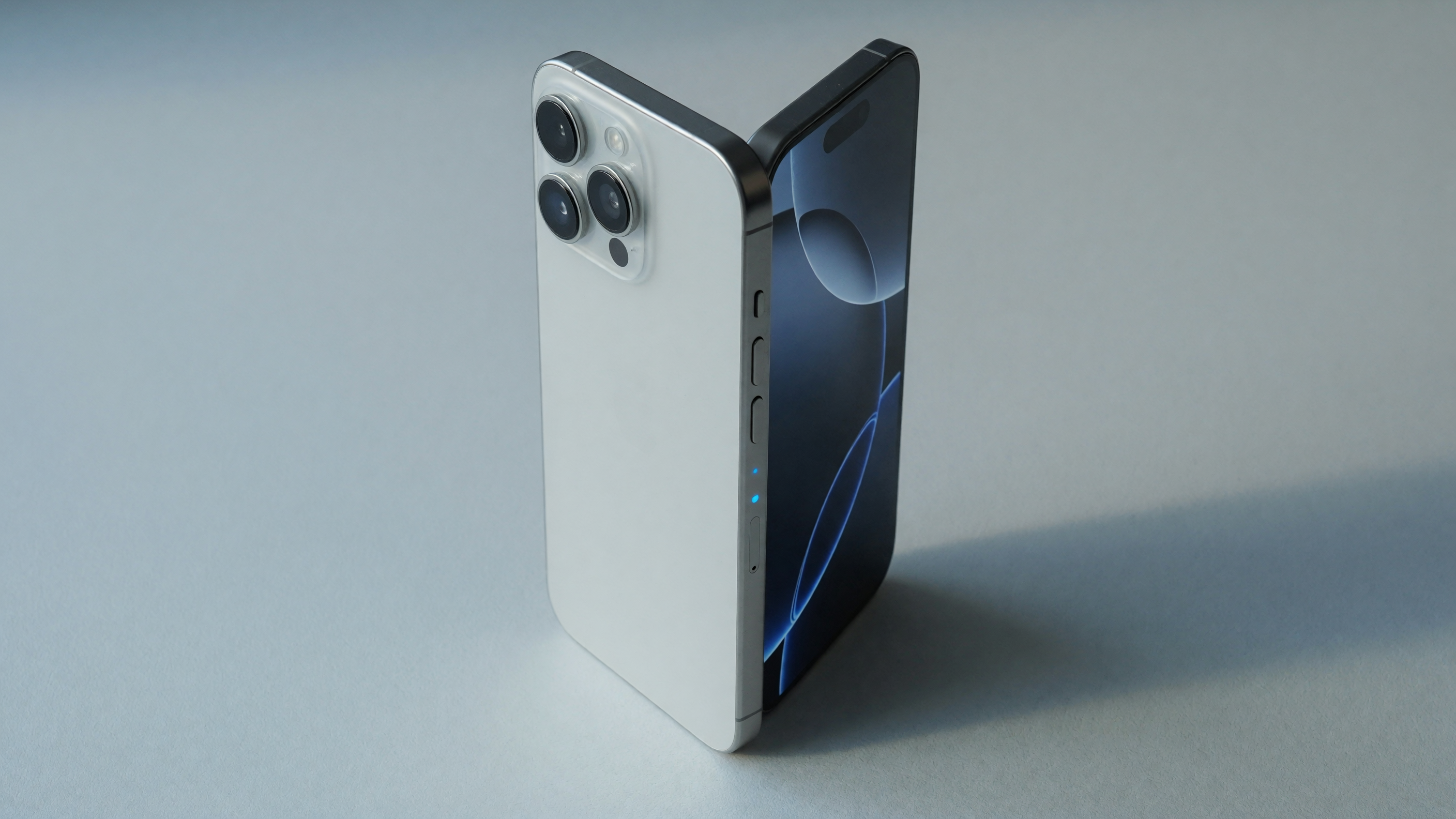

iPhone 17 Pro Aluminum Unibody, Vapor Chamber and Triple 48MP Cameras

The iPhone 17 Pro uses a heat-forged aluminum unibody enclosure from aerospace-grade 7000-series aluminum alloy, an Apple-designed laser-welded vapor chamber with deionized water, and a triple 48MP Pro Fusion camera system. These physical elements replace the prior titanium frame and enable higher sustained performance from the A19 Pro chip, expanded internal space for battery capacity, even heat distribution, and improved imaging hardware.

Apple's official product pages and September 2025 announcement confirm these as core aspects of the complete physical product for the iPhone 17 Pro and iPhone 17 Pro Max.

New Unibody Design Overview

The aluminum unibody forms the structural base that supports thermal management, component layout, and durability improvements. This design choice directly addresses limitations of previous enclosures by increasing thermal conductivity and internal volume.

The unibody incorporates a forged plateau on the back that creates additional space for the battery and other components. Perimeter integration of antennas maintains connectivity without separate structural elements. These features work together to allow the device to sustain higher performance levels during extended use while managing surface temperatures for comfort.

Criteria for evaluating the unibody include its capacity to conduct heat from the processor and the additional internal volume it creates for power components. The forging process must deliver strength while keeping the overall weight low enough for daily handling.

Limitations arise because the exact battery capacity increase remains unspecified beyond general battery life claims, and sustained performance gains depend on usage patterns and ambient temperatures not detailed in official sources. In a situation where a user runs demanding applications for several hours in a warm room, the unibody distributes heat to reduce throttling but does not remove the need to monitor device temperature.

A typical mistake involves assuming the unibody removes all heat-related slowdowns, which can lead to overestimating continuous high-performance runtime. Another error is neglecting how the forged plateau changes the device's balance and affects one-handed operation or case fit.

Readers should cross-reference the full technical specifications to match the design against their specific performance and handling requirements.

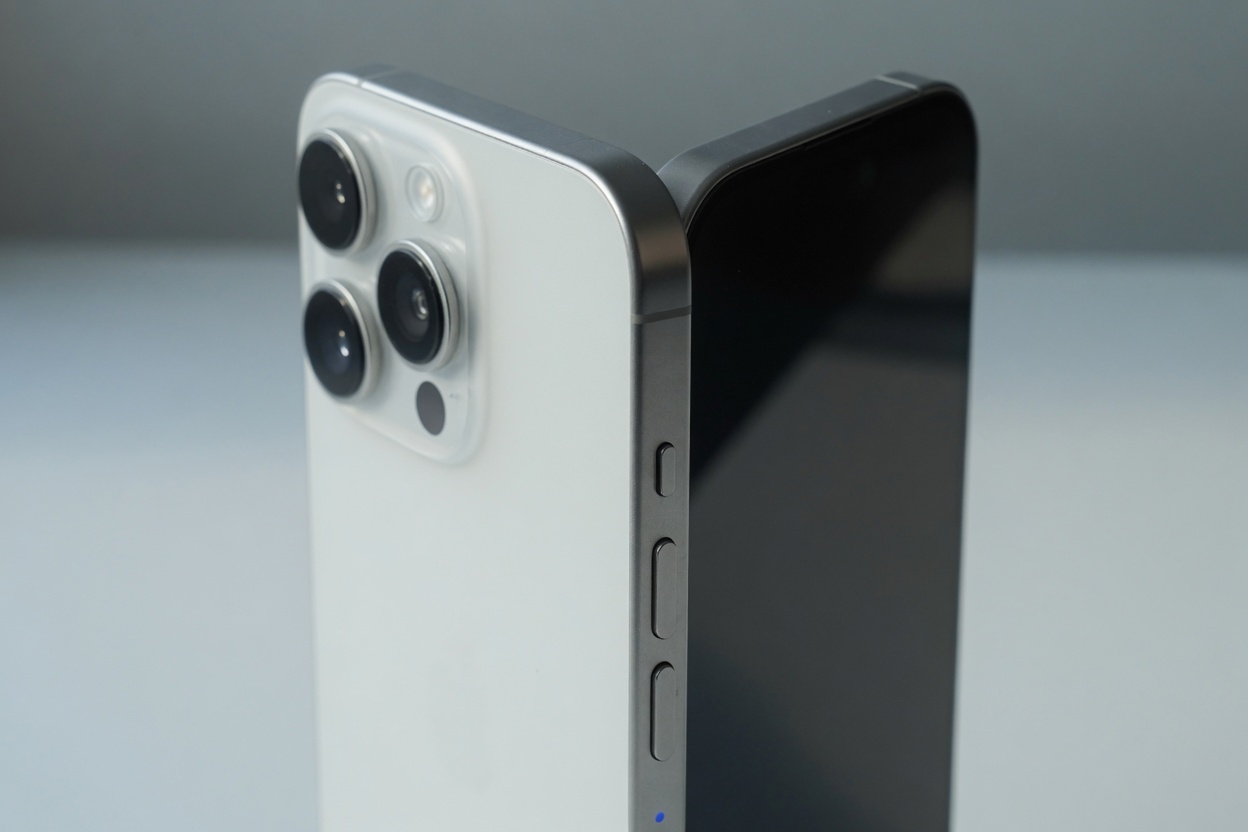

Aluminum Unibody Construction and Materials

The enclosure is crafted from a lightweight 7000-series aluminum alloy through a heat-forging process. This material provides the necessary strength and reduced weight compared to the titanium frames used on earlier Pro models while offering improved thermal conductivity.

The brushed finish covers the entire unibody surface. The forged plateau on the back expands the internal architecture, enabling a larger battery while preserving the overall rectangular form with rounded corners. Antennas are embedded around the perimeter of the unibody. This integration contributes to signal reliability and simplifies the internal layout for better component efficiency.

Criteria for material selection center on the alloy's combination of tensile strength, thermal transfer rate, and weight savings. The heat-forging method must produce consistent grain structure to resist deformation during normal use and minor drops.

Limitations include that the aluminum may show different scratch behavior than titanium in direct comparisons, although Ceramic Shield 2 provides separate front and back protection. Official sources do not provide exhaustive side-by-side weight or hardness data across all environmental conditions.

In a situation where the device experiences frequent outdoor temperature swings, the aluminum unibody aids even heat spreading but requires users to select cases that do not trap additional warmth.

A common mistake is equating the 7000-series alloy with lower-grade aluminum found in non-Pro models, which overlooks the specific aerospace-grade properties. Another error is assuming full repairability without considering how perimeter antenna integration affects internal access.

Verification of listed material properties in the official tech specs helps avoid mismatched expectations about durability and weight.

Vapor Chamber Cooling System

The laser-welded vapor chamber is built into the aluminum chassis and contains deionized water that undergoes phase change to transfer heat from the A19 Pro chip. The chamber spreads heat across the thermally conductive unibody for even distribution.

This cooling approach allows the chip to maintain higher performance during intensive tasks such as gaming and video editing. Heat moves efficiently through the aluminum structure rather than concentrating in one area. The system supports up to 40% better sustained performance relative to the previous generation by reducing thermal throttling.

Criteria for assessing the cooling system include its ability to handle peak loads without raising surface temperatures beyond comfortable levels and its compatibility with the unibody's thermal conductivity. The chamber size and fluid volume must balance heat transfer efficiency against internal space constraints.

Limitations involve the fact that the vapor chamber cannot lower temperatures below ambient conditions and that performance claims are tied to the A19 Pro chip and iOS optimizations. In a situation where the device operates in direct sunlight during extended gaming, the system distributes heat but may still result in gradual surface warming that prompts reduced settings.

A typical mistake is believing the vapor chamber makes the device immune to all thermal limits, leading to prolonged use at maximum settings without monitoring. Another error is confusing the internal cooling with external water resistance features.

Users can review the announcement details to understand the stated performance improvement and apply it to their typical workload patterns.

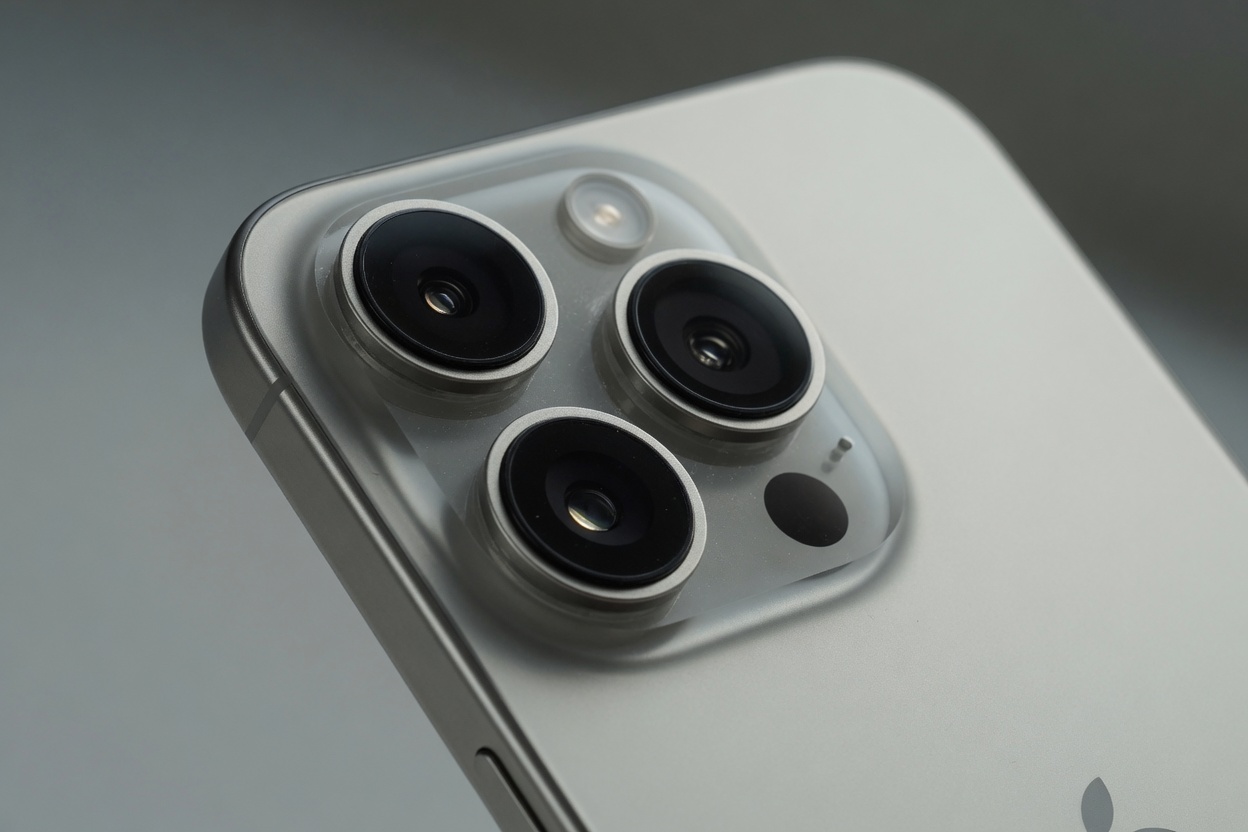

Triple 48MP Pro Fusion Camera System

The rear camera array includes three 48MP Fusion sensors. The Main camera uses a 24 mm focal length with an ƒ/1.78 aperture. The Ultra Wide camera has a 13 mm focal length, ƒ/2.2 aperture, and 120° field of view. The Telephoto camera features a 100 mm focal length with ƒ/2.8 aperture and a next-generation tetraprism design. Its sensor is 56% larger than the prior generation, improving detail capture across lighting conditions.

The full system delivers the equivalent of eight lenses with up to 8x optical-quality zoom. It supports high-resolution stills and advanced video capabilities as listed in the official tech specifications. The Main sensor handles standard photography with wide aperture for low-light performance, while the Ultra Wide expands scene capture for landscapes and the Telephoto enables compressed perspective for portraits and distant subjects.

Criteria for evaluating the camera system include sensor resolution consistency across all three lenses, aperture values for light gathering, and the tetraprism mechanism's contribution to optical-quality zoom without excessive digital interpolation. The larger Telephoto sensor must deliver measurable sharpness gains in varied conditions.

Limitations include that optical-quality zoom stops at 8x and further magnification relies on digital processing that can reduce detail. Official sources do not specify exact low-light performance metrics beyond the hardware descriptions. In a situation where a user captures portraits at 4x zoom in mixed indoor lighting, the tetraprism and larger sensor improve edge sharpness but may still require steady holding to avoid blur.

A common mistake is expecting every zoom level to retain full 48MP resolution without quality trade-offs. Another error is overlooking the distinct roles of each lens and assuming the system functions as a single variable-focal-length unit.

Consulting the tech specs page allows confirmation of focal lengths and apertures before purchase decisions.

Durability Enhancements

Ceramic Shield 2 covers both the front and back of the device. The front coating provides 3x better scratch resistance, and the back offers 4x better crack resistance compared to previous generations. The aluminum unibody combines with this protection to achieve the stated durability levels. The design also carries an IP68 rating for water and dust resistance.

These elements form part of the complete physical product and contribute to the overall resilience of the enclosure. The improved coatings address common wear points while the unibody supplies structural support.

Criteria for durability assessment include the quantified resistance improvements and the IP68 rating's applicability to real-world submersion depths and durations. The combination of materials must withstand daily handling without compromising the internal architecture.

Limitations include that no enclosure is indestructible and that resistance ratings apply under controlled test conditions rather than all possible impacts or chemical exposures. Official sources do not detail performance after prolonged exposure to abrasive environments.

In a situation where the device is carried in a pocket with keys, the enhanced scratch resistance on the front reduces visible marks but does not prevent all surface wear over time.

A typical mistake is treating the IP68 rating as proof against all liquids or assuming the back coating eliminates the need for a protective case. Another error is ignoring that durability claims apply to the complete assembly including the unibody and Ceramic Shield 2.

Checking the product page for the full rating details helps set realistic expectations about long-term resilience.

Performance and Battery Implications

The aluminum unibody and vapor chamber together enable the A19 Pro chip to deliver higher sustained performance by moving and distributing heat effectively. This reduces the need for performance reduction during demanding workloads. The forged plateau and optimized internal architecture increase space for a larger battery.

When paired with chip efficiency and iOS power management, the result is the best battery life in any iPhone, including up to 39 hours of video playback on eSIM-only Pro Max models. These physical changes directly support extended sessions in performance-intensive applications without rapid battery drain or excessive heat buildup.

Criteria for evaluating these implications include the stated 40% sustained performance gain and the battery life figures under specific playback conditions. The design must deliver measurable improvements in both thermal headroom and power capacity simultaneously.

Limitations include that real-world battery life varies with network conditions, screen brightness, and application demands not fully quantified in the announcement. The performance improvement is measured under controlled test scenarios.

In a situation where a user edits 4K video for two hours, the combined cooling and battery capacity support longer sessions at higher settings before throttling or low-power warnings appear.

A common mistake is expecting the improvements to double previous battery life across all tasks or assuming the vapor chamber alone accounts for the entire gain without the unibody's contribution.

Reviewing the announcement for the exact battery playback claims provides a baseline for personal usage comparisons.

Finishes, Sizes, and Physical Attributes

Confirmed finishes are Silver, Cosmic Orange, and Deep Blue. Both the standard Pro and Pro Max models share the same unibody, vapor chamber, and camera hardware foundations. The Pro Max variant provides a larger display size while retaining the core physical design elements. Additional hardware includes the Action button, Camera Control, and USB-C port. The display supports up to 3000 nits peak outdoor brightness.

Exact dimensions and weights appear in the official technical specifications. The finishes must maintain the brushed aluminum appearance while the buttons and port remain consistent across color options.

Criteria for finish selection include personal preference for color visibility and how the brushed surface interacts with fingerprints or reflections. Size choice depends on display needs balanced against portability.

Limitations include that color availability may change over time and that exact weight differences between Pro and Pro Max are listed only in the specs without further breakdown. The design does not include additional finish options beyond the three named.

In a situation where the device is used primarily outdoors, the Silver finish may reduce visible smudges compared with darker options while still showing the aluminum texture.

A typical mistake is assuming all finishes offer identical thermal or durability characteristics without verifying that the unibody material remains the same across colors.

Consulting the tech specs page confirms the precise measurements and button placements for each model variant.

How These Elements Redefine the Flagship

The aluminum unibody, vapor chamber integration, and triple 48MP camera system form interconnected physical updates that improve thermal performance, internal capacity, and imaging hardware. Official sources tie these changes to measurable gains in sustained operation and durability.

Readers evaluating the model should review the full tech specs for precise measurements and capabilities. The design focuses on confirmed hardware specifications from the September 2025 announcement. Practical next steps include comparing the listed sustained performance and battery figures against individual usage patterns before deciding on the model.

Limitations of the overall approach include reliance on the A19 Pro chip and iOS for realizing the stated benefits, with no independent verification provided beyond Apple's claims. In a situation where a buyer prioritizes camera zoom and thermal stability for professional work, the triple 48MP system and vapor chamber address those needs directly through the hardware described.

A common mistake is expecting software-exclusive features to be covered in the physical design discussion or assuming the changes apply identically to non-Pro models. Another error is overlooking the need to check current availability of finishes and exact dimensions on the product page.

Consult Apple's product pages for the most current details, as specifications reflect the primary announcement period.
